AI Visual Content Analysis System

The Visual Data Bottleneck Nobody Has Solved

A significant and growing portion of the world's business-critical information is locked inside images. Product listings contain pricing and specifications embedded in photos. Competitor websites display promotions in banner graphics. Research datasets include charts, tables, and diagrams that exist only as visuals. Social media posts carry text overlaid on images. Every team that needs to extract and use this information faces the same problem: someone has to look at each image, read it, and type out what they see — manually, one image at a time.

At low volumes this is annoying. At scale, it becomes a genuine operational constraint. Content and research teams spending 15–20 hours weekly on manual image review are hitting a ceiling that prevents them from processing the full datasets their workflows require. Rushed analysis misses embedded information. Batch jobs that require reviewing hundreds of images simply don't get done. And because every image requires individual human attention, there is no meaningful path to scaling visual data extraction without proportionally scaling headcount — until now.

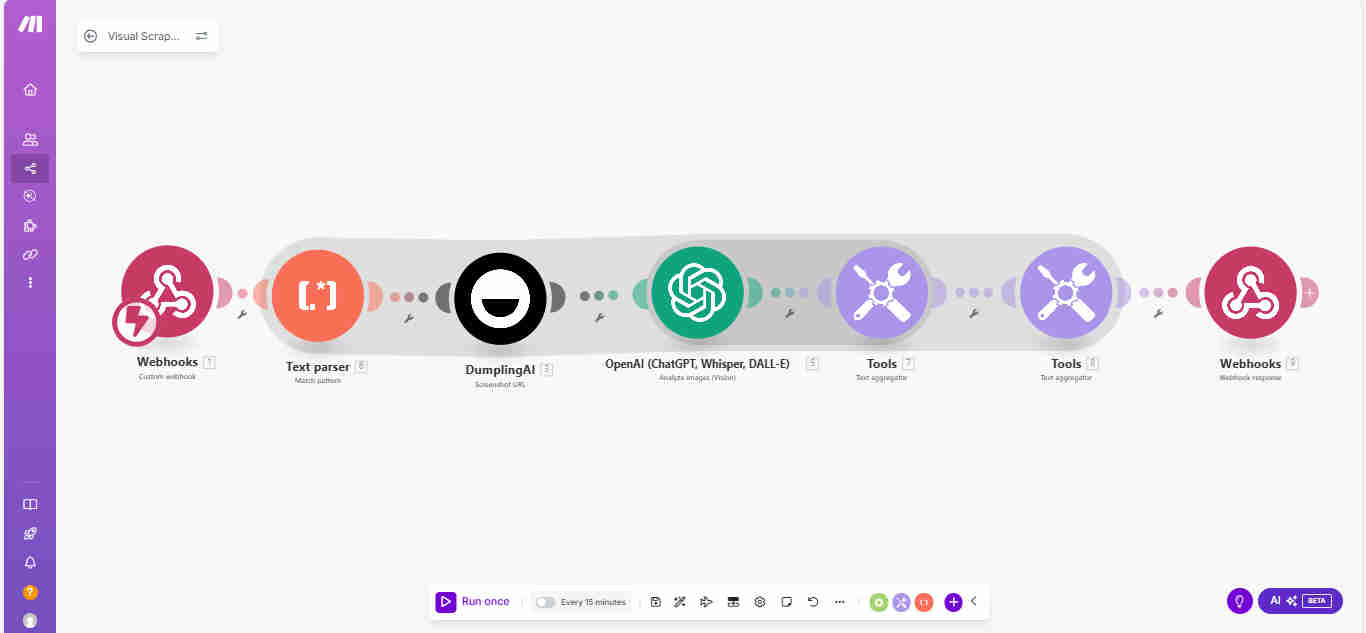

The complete Make.com automation — from webhook data reception through text parsing, image capture, OpenAI Vision analysis, multi-image aggregation, and final structured data output

Building the Visual Intelligence Pipeline: From Image URL to Structured Dataset Automatically

GrowwStacks engineered a complete visual analysis automation built around one outcome: any dataset containing image URLs should be enrichable with AI-extracted visual data without human intervention. The pipeline receives incoming scraped data via webhook, parses it into structured JSON, captures screenshots from the embedded image URLs using ScreenshotOne, passes each captured image to OpenAI Vision for comprehensive analysis, and aggregates the extracted data from all images into a single structured response that downstream systems can consume directly.

The architecture's key design decision was to process each image independently before aggregation — rather than batch-passing images to a single API call — which ensures extracted data from one image never contaminates or gets mixed with data from another. This matters critically when processing 10+ product images, competitor screenshots, or research visuals that each carry distinct information that must remain cleanly associated with its source.

From Incoming Data to Structured Visual Intelligence: The Complete Flow

The system executes across eight tightly integrated steps, handling the full pipeline from raw scraped input to a structured, analysis-ready output dataset. Here's exactly how it works:

1. Webhook data reception: The Make.com scenario exposes a webhook endpoint that receives external scraped data containing both structured fields (text parameters, metadata) and unstructured elements (image URLs embedded in various formats). The webhook accepts POST requests from any data source — scraping tools, external APIs, custom scripts, or other automation platforms.
2. Text parser and JSON conversion: A text parser module processes the incoming data, converting unstructured content into a consistently formatted JSON structure with clearly defined key-value pairs. This normalization step is critical — it ensures that regardless of how inconsistently formatted the incoming scraped data is, the downstream modules always receive clean, predictable input they can process reliably.
3. Image URL extraction and screenshot capture: ScreenshotOne receives the extracted image URLs from the parsed data and captures a high-quality screenshot of each URL. This handles both direct image file URLs and URLs that point to web pages where the target visual is embedded — ScreenshotOne renders the full visual content and produces a captured image file ready for AI analysis.
4. OpenAI Vision analysis — per image: Each captured image is passed individually to the OpenAI Vision model. The analysis prompt is engineered to extract all relevant information from the specific visual type being processed — for product images, this includes pricing, specifications, brand elements, and condition; for competitor screenshots, it captures promotions, messaging, and UI elements; for research visuals, it extracts data points, labels, and contextual information. The model performs OCR on embedded text, identifies visual objects and elements, and generates structured analytical output.
5. Independent multi-image processing: The system processes each image as a completely separate analysis task, maintaining clean data isolation. Images 1 through 10+ are each analyzed independently, with their respective extracted data stored separately before the aggregation step. This prevents cross-contamination between image datasets and ensures each visual's information remains precisely attributed to its source URL.
6. Text aggregation into structured array: After all images have been analyzed, the text aggregator module combines the individual extraction results into a single structured array. Each element in the array represents one image's complete analysis output — text extracted, objects identified, insights generated — organized with source attribution maintained throughout.
7. Final data consolidation: A final tool module merges the aggregated image data array with the original text parameters and metadata from the incoming scraped data. The result is a comprehensive unified dataset that combines all visual intelligence extracted from the images with the contextual text data that accompanied them — everything in a single, coherent output structure.
8. Structured webhook response: The complete consolidated dataset is returned as a structured JSON response through the webhook, making it immediately consumable by the requesting system, downstream automation, database, or application without any additional formatting or manual handling.

What This System Does That Manual Analysis Can't

The System in Action

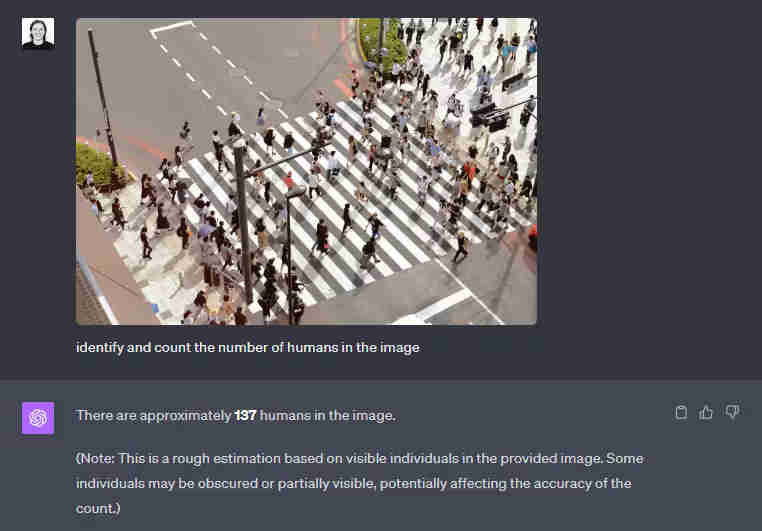

OpenAI Vision analysis output — embedded text extracted via OCR, visual objects identified, and contextual insights structured into clean data fields for downstream use

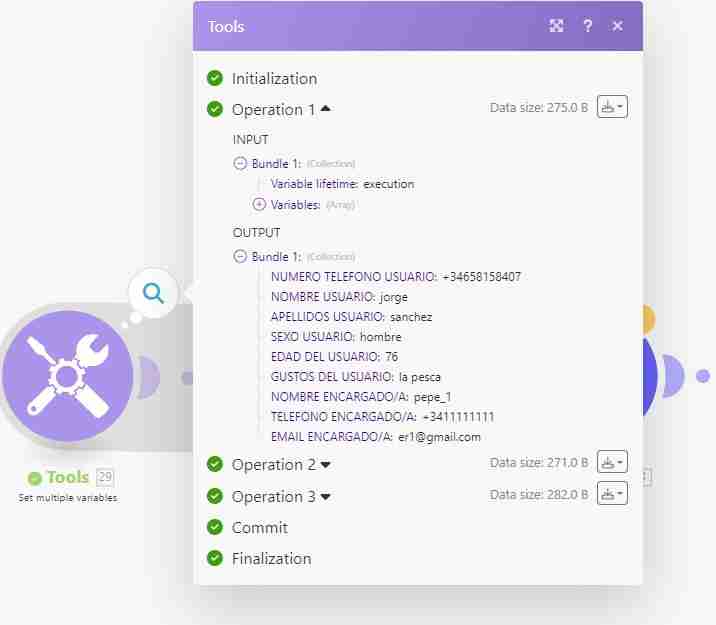

The consolidated aggregation output — individual image analysis results combined into a single structured array with full source attribution, merged with original text parameters and ready for downstream consumption

Before vs. After: What Changes When Images Analyze Themselves

Before: Content and research teams spent 15–20 hours weekly manually reviewing images, transcribing embedded text, extracting data points, and compiling information from multiple visual sources into spreadsheets. Analysis quality was inconsistent — rushed reviews missed information, and there was no standardized extraction framework across team members. Processing volumes were capped by human capacity, meaning large image datasets simply went unprocessed or required expensive contractor time for batch jobs.

After: The automated system processes unlimited images — extracting text, objects, and insights using OpenAI Vision, aggregating data from 10+ visuals into structured arrays, and consolidating complete datasets without any manual review or transcription. Weekly visual analysis time drops from 20 hours to approximately 60 minutes of workflow monitoring and output quality checks. Extraction quality is consistent across every image because the same AI analysis logic runs identically on every visual, regardless of volume or processing time.

Implementation: Live in 8 Weeks

1. Webhook and parser configuration: The webhook endpoint is set up and configured to receive your specific scraped data format. Text parser rules are developed to convert your incoming data structure into clean JSON with proper key-value pairs. The output schema is designed to match the field structure your downstream systems expect. Parsing accuracy is validated against a representative sample of real incoming data before any downstream modules are connected.
2. Image capture setup: ScreenshotOne is connected via API credentials and configured with screenshot quality parameters — resolution, format, rendering timeout — optimized for the image types your pipeline processes. URL extraction logic is built from the parsed data structure. Capture is tested across the variety of image source types in your dataset, including edge cases like slow-loading pages or dynamically rendered images.
3. OpenAI Vision integration: The OpenAI account is connected and vision analysis prompts are engineered specifically for your image type — product images, competitor screenshots, research visuals, or content moderation use cases each require differently structured extraction prompts. OCR parameters are configured for the text density and font types common in your visual data. Extraction accuracy is tested and prompts are refined across a representative image sample before production deployment.
4. Aggregation workflow build: The multi-image processing loop is built to handle your required volume (10+ images per run). The text aggregator is configured to combine extracted data into structured arrays with source attribution maintained. The final consolidation module is built and tested to confirm the output structure is correctly formatted for your consuming application or database. Data integrity is validated across multi-image batch runs.
5. End-to-end testing and deployment: The complete workflow is tested with representative datasets across varied image types and volumes. Webhook response structure is validated against your downstream system's ingestion requirements. Error handling is added for API failures, timeout scenarios, and inaccessible image URLs. Monitoring dashboards are configured to track processing success rates before production deployment.

The Right Fit — and When It Isn't

This solution delivers maximum value for e-commerce teams analyzing product images at scale, competitive intelligence operations monitoring visual content, research teams processing image-heavy datasets, marketing analysts reviewing creative assets, and content moderation groups requiring systematic image analysis that manual review cannot sustain at required volumes.

One practical note: OpenAI Vision performs best on images with clear, legible content — product photography, website screenshots, document scans, and infographics. Heavily compressed, very low resolution, or highly abstract artistic images will produce less complete extractions. For pipelines where image quality is variable, we build a quality pre-screening step that flags low-quality images for manual review before Vision analysis, ensuring the automated output maintains high accuracy across your full dataset. We scope this during discovery based on your image source characteristics.
